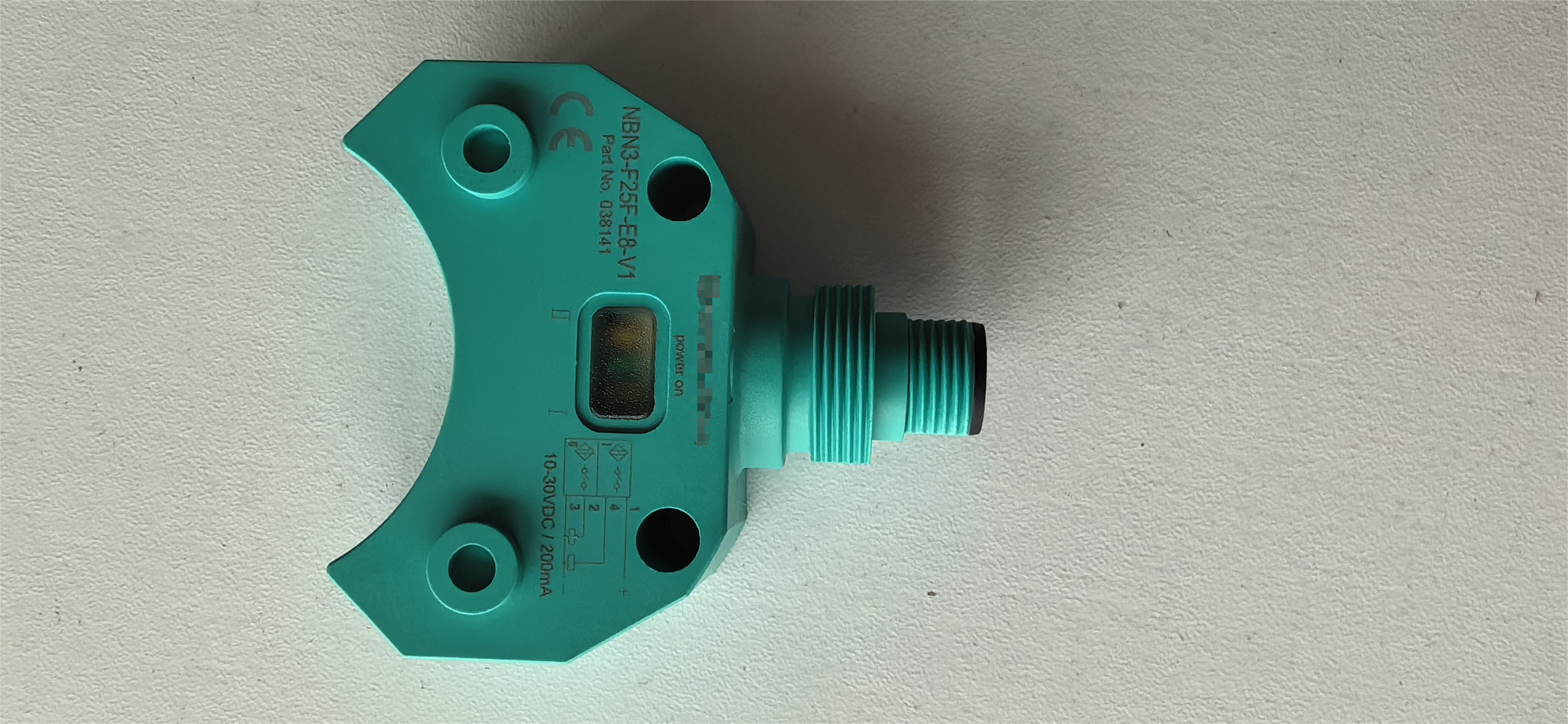

P+F Inductive Sensor NBN3-F25F-E8-V1 Flush Mountable Assured Operating Distance 0-2.3 mm

Product Categories

SC Automation Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : p+F

Model Number : NBN3-F25F-E8-V1

Certification : CE

Place of Origin : Germany

MOQ : 1pc

Price : negotiable

Payment Terms : T/T

Supply Ability : 100pcs per month

Delivery Time : on request

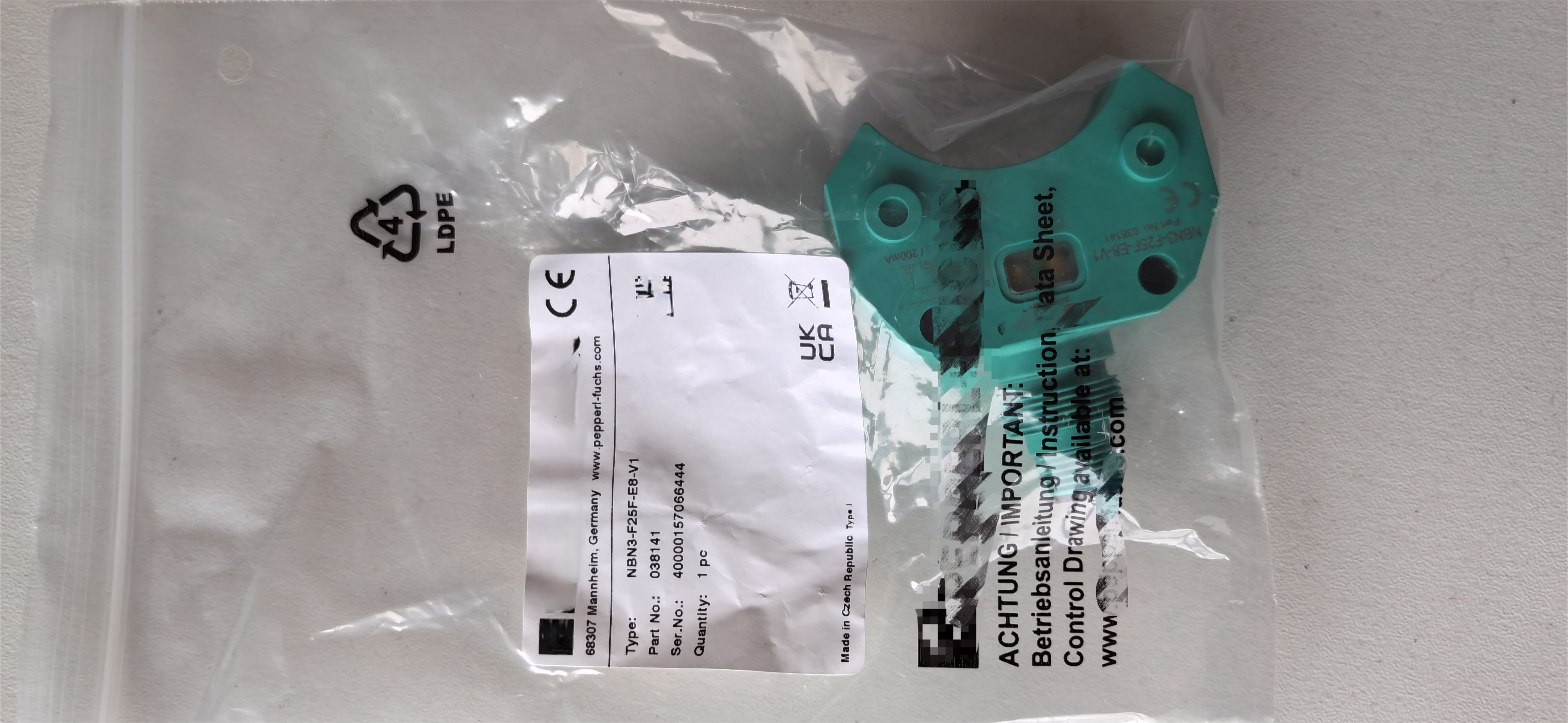

Packaging Details : standard carton packing

Switching function : 2 x normally open (NO)

Output type : 3-wire

Rated operating distance : 3 mm

Installation : flush mountable

Output polarity : DC

Assured operating distance : 0 ... 2.3 mm

Contact Now

Inductive sensor NBN3-F25F-E8-V1

General specifications
Switching function		2 x normally open (NO)
Output type		PNP
Rated operating distance		3 mm
Installation		flush mountable
Output polarity		DC
Assured operating distance		0 ... 2.3 mm
Actual operating distance		2.6 ... 2.6 mm typ.
Reduction factor rAl		0.5
Reduction factor r304		1
Reduction factor rSt37		1.1
Output type		3-wire
Nominal ratings
Operating voltage		10 ... 30 V DC
Switching frequency		0 ... 500 Hz
Hysteresis		typ. 5 %
Reverse polarity protection		all connections
Short-circuit protection		pulsing
Voltage drop		≤ 3 V
Operating current		0 ... 200 mA
Off-state current		0 ... 0.5 mA typ. 0.1 µA at 25 °C
No-load supply current		≤ 25 mA
Time delay before availability		≤ 500 ms
Operating voltage indicator		LED, green
Switching state indicator		LED, yellow
Functional safety related parameters
MTTFd		870 a
Mission Time (TM)		20 a
Diagnostic Coverage (DC)		0 %
Compliance with standards and directives
Standard conformity
Standards		EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012
